Multiplayer Features

Citra’s multiplayer feature has the ability to emulate local wireless multiplayer over the Internet. While on a real 3DS you’d be limited to the people in your immediate vicinity, Citra boasts a complex server/client infrastructure that forwards a game’s wireless communication across the internet.

Unlike single console netplay used in most emulators, users won’t have to worry about desyncs, synchronizing saves, or any other issues typical of netplay. Each user is using their instance of Citra as a unique emulated 3DS that is communicating with everyone else through a multiplayer room, a server that can be hosted by anyone for connected clients to exchange data with each other.

You can learn more about Citra’s multiplayer features in this article.

Hosting Rooms

If you just want to play with your friends, you do not need to create your own room. You can just pick a room from our Public Room Browser, where plenty of public rooms hosted by us and the community are already available for use.

If you just want to temporarily host a room for you and your friends to play, the easiest way is to host a room from the UI (Multiplayer > Host Room). The room will be deleted once the host exits Citra. You will still need to configure Port forwarding if you and your friends are not on the same network.

However, if you really want to host your own dedicated room, there are a few points you should keep in mind:

• As a room is actually a server, the computer hosting it has to be running 24x7. Therefore, it is usually not feasible to use your home or work PC to host a room.
• To ensure the best experience while playing, rooms should have a good Internet connection as well as a high bandwidth. This is especially important if you are hosting a public room - no one would want random disconnections while playing!
• Citra rooms can be quite costy in terms of data transfer. It has been reported that some popular public rooms transfer over 1TB of data in a single month.

Therefore, the best option to host a room is usually to use a VPS provider, such as Linode or DigitalOcean, to name a few.

Port Forwarding

Typically, routers have a unified public IP for all its network members, and by default external users cannot access any of the ports (as the router won’t know which member to send it to!). Therefore, if you use a router for your Internet connection, you will need to configure Port forwarding for your router. Detailed configuration process varies by router brand and model. Obviously we cannot provide instructions for every model, and you can refer to your router’s manual or website.

For VPSes, a similar restriction (often called Security Groups) exists to help keep your server safe from attacks using certain ports. You may need to manually enable the ports you want to use in your VPS’s dashboard.

Hosting on Linux (Recommended)

If you are using a Linux VPS (which is the recommended option), the officially supported way of hosting dedicated rooms is using our Docker image.

First of all, you should install Docker on your system. Refer to its documents regarding installation.

Once you get a Docker installation ready, hosting dedicated rooms is as easy as filling in the arguments (they will be explained later) and running the following command in terminal:

sudo docker run -d \
  --publish 5000:5000/udp \
  citraemu/citra-multiplayer-dedicated \
  --room-name "<INSERT ROOM NAME HERE>" \
  --room-description "<INSERT ROOM NAME HERE>" \
  --preferred-game "<INSERT GAME TITLE HERE>" \
  --preferred-game-id "<INSERT TITLE ID HERE>" \
  --port 5000 \
  --max_members 4 \
  --token "<INSERT CITRA ACCOUNT TOKEN HERE>" \
  --enable-citra-mods \
  --web-api-url https://api.citra-emu.org/

Make sure the ports specified in --publish matches the port specified in --port, so that Docker can correctly forward your server’s ports to the container.

You can also save this command (with arguments filled in) as a script for easier usage.

Hosting on Windows

If you are on Windows, it is also possible to host rooms using a standalone executable. As you may already know, every Citra release comes with three executables - citra (The command line emulator frontend), citra-qt (The GUI emulator frontend) and citra-room, the dedicated room server which we’ll use.

Steps:

1. If you do not have a Citra installation yet, install it with the installer from our official website.

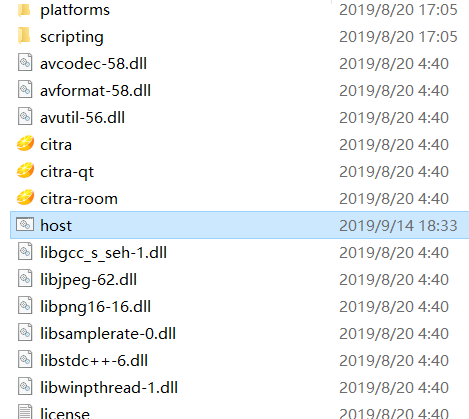

2. Navigate to the folder you installed Citra to, and go into nightly-mingw or canary-mingw.
   • If you cannot recall the installation folder, right clicking on a shortcut and clicking Open File Location will directly bring you into the nightly-mingw or canary-mingw folder.
   • Make sure the folder you are in contains the citra-room executable.
3. Create a new text file and copy the following script inside, fill in the arguments (they will be explained later) and then use File > Save As... to save it to host.bat. You can delete the original text file after that.
4. You can now double click on the batch script named host to start hosting.

citra-room ^
  --room-name "<INSERT ROOM NAME HERE>" ^
  --room-description "<INSERT ROOM DESCRIPTION HERE>" ^
  --preferred-game "<INSERT GAME TITLE HERE>" ^
  --preferred-game-id "<INSERT TITLE ID HERE>" ^
  --port 5000 ^
  --max_members 4 ^
  --token "<INSERT CITRA ACCOUNT TOKEN HERE>" ^
  --enable-citra-mods ^
  --web-api-url https://api.citra-emu.org/ ^
  --ban-list-file "<INSERT BAN LIST FILE PATH HERE>"
pause

Command Line Arguments

Both the Docker image and the citra-room executable takes a number of command line arguments. Command line arguments should be specified in the format of --<name> <value>, for example --port 5000.

By default, rooms will be hosted Public. If you’d like to host a private one instead, just omit one of the fields required only for public rooms.

Additionally, a flag --enable-citra-mods is available. By enabling this flag, you will grant Citra Community Moderators the power to moderate on your room. Do not worry, this is entirely optional and your room will still be listed even if you do not enable this.

Authentication and Moderation

As you may already know, Citra multiplayer rooms can authenticate users and grant certain users moderation privileges. Authenticated users get their Citra Community username and avatar shown in the member list, and others can right click on them to view their Citra Community profile.

Note that this feature requires interacting with the Citra Web API, and therefore is only enabled for public rooms in the Public Room Browser. Directly connecting to the rooms (with Direct Connect) will leave you unauthenticated.

Currently, Citra rooms grant the following members moderation privileges by default:

• Room host (i.e. members authenticated with the same user name used when hosting the room)
• Citra Community Moderators, when rooms are hosted with the --enable-citra-mods flag.

Due to complexity, it is not possible to grant other users moderation privileges.

Users with moderation privileges will notice a Moderation... button on the right top of the Room dialog. With this you can view the current ban list and unban when needed. You can also right click on a member in the member list and click on Kick or Ban to impose moderation actions on them. Note that Block Player is different from a ban and is available to all users to block messages from certain members only locally.

Instructions on Using Download Play (LLE)

Download Play is yet another gimmick Nintendo added to the DS, and then passed on to the 3DS family. Download Play allows players to send and receive short demo games. Not only that, some games like Mario Kart 7 use this for local multiplayer as well.

Since this is LLE, keep in mind that you need to dump quite a few system files for multiplayer to work on these few games. In the past, this would mean manually looking through GodMode9 trying to find a bunch of different files. However, thanks to threeSD the hassle is no more!

Follow these steps to dump the necessary system files and enable DLP LLE:

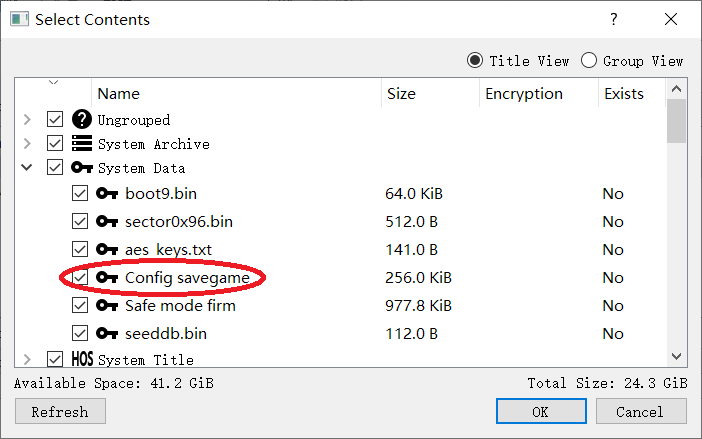

1. Follow the threeSD Quickstart Guide. Remember to manually select System Data > Config savegame in the contents list!

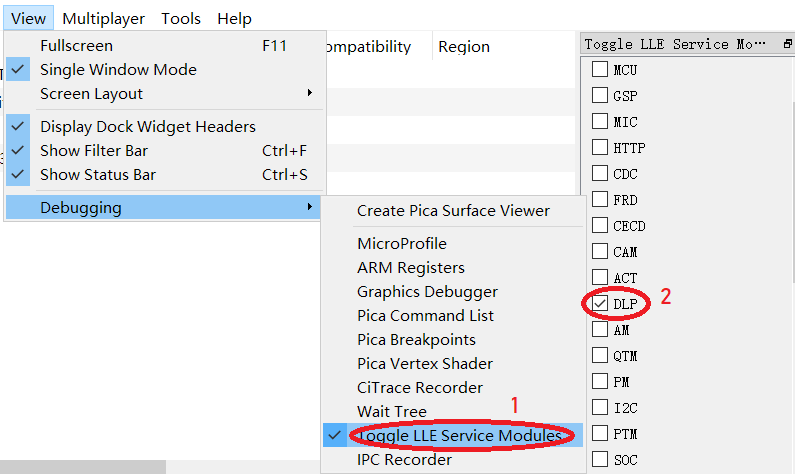

2. Open Citra and click on View > Debugging > Toggle LLE Service Modules in the menu.
3. In the widget that appeared, find and check DLP.
